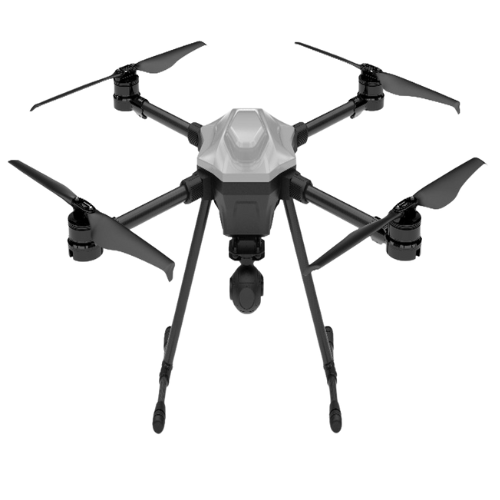

M40 Drone: Technical Specifications
The M40 is a robust quadcopter drone designed for performance and reliability. With a significant payload capacity and extended flight time, it is built to handle demanding tasks. Below are the detailed technical specifications.
Aircraft
- Propellers: Quadcopter (4 propellers)
- Diagonal Wheelbase: 900 mm
- Dimensions (Folded): 350 x 400 x 470 mm
- Dimensions (Unfolded): 710 x 710 x 470 mm
- Aircraft Weight: 3 kg (without battery)
- Max Payload: 3 kg
- Max Takeoff Weight: 9 kg
- Hovering Accuracy:
- Vertical: ±0.5 m
- Horizontal: ±0.1 m
Flight Performance
- Max Flight Speed: 8-15 m/s
- Max Ascent Speed: 3 m/s
- Max Descent Speed: 3 m/s
- Max Wind Resistance: 10 m/s
- Max Flight Altitude: 60 m
- Typical Flying Altitude: 3000 mm from the ground
- Max Control Range: Data not specified; operates best in open areas without obstacles.
- Operating Temperature: -10°C to 40°C
Power System
- Battery: 6S 30000mAh
- Operating Voltage: 25.2V (6S)
- Flight Time (No Payload): 60 minutes
- Flight Time (With Payload): 45 minutes
- Battery Charge Time: 60 minutes
