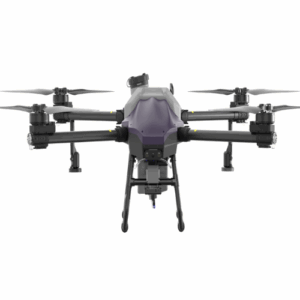

NV20 Agricultural Drone: Technical Specifications
The NV20 is a robust 4-propeller agricultural drone designed for large-scale crop spraying operations. With an increased tank capacity and efficient performance, it is a powerful tool for modern agriculture.
Aircraft
- Type: 4-propeller agricultural drone
- Diagonal Wheelbase: 1480 mm
- Dimensions (Folded): 610 x 1010 x 580 mm
- Dimensions (Unfolded): 1140 x 1300 x 580 mm
- Body Weight: 25 kg
- Max Takeoff Weight: 45 kg
Spraying System
- Tank Capacity: 20 Liters
- System Type: Rotary spraying system
- Spray Rate: 8 Liters/minute
- Spray Width: 5-8 meters
Flight Performance
- Max Flight Speed: 5-10 m/s
- Control Range: 3 km (without obstacles)
- Operating Temperature: -10°C to 40°C
Power System
- Battery Voltage: 58.8V (14S)
- Battery Capacity: 14S 20000mAh
- Battery Weight: 6.2 kg
- Flight Time (No Load): 20 minutes
- Flight Time (With Load): 10 minutes
- Charging Time: 25 minutes
