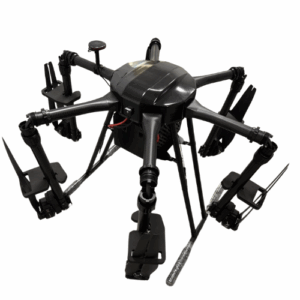

M630 Drone: Technical Specifications
The M630 is an ultra-heavy-lift hexacopter designed for maximum payload capacity and stability. Its robust six-rotor platform makes it ideal for the most challenging industrial, agricultural, and logistical missions.
Aircraft
- Type: Hexacopter (6 propellers)
- Diagonal Wheelbase: 1900 mm
- Dimensions (Folded): 1100 x 1050 x 850 mm
- Dimensions (Unfolded): 2050 x 1800 x 850 mm
- Body Weight: 20 kg (without battery)
- Max Payload: 30 kg
- Max Takeoff Weight: 68 kg
- Hovering Accuracy: Vertical 10.5 m, Horizontal ±0.1 m
Flight Performance
- Max Flight Speed: 8-15 m/s
- Max Ascent Speed: 3 m/s
- Max Descent Speed: 3 m/s
- Max Wind Resistance: 10 m/s
- Max Flight Altitude: 1,500 m
- Typical Flying Altitude from Ground: 3000 mm
- Operating Temperature Range: -10°C to 40°C
- Max Control Range: Value not specified (operates in open areas without obstacles)
Power System
- Battery: 14S 54000mAh
- Operating Voltage: 58.8V (14S)
- Flight Time (No Load): 60 minutes
- Flight Time (With Load): 20 minutes
- Battery Charge Time: 60 minutes
