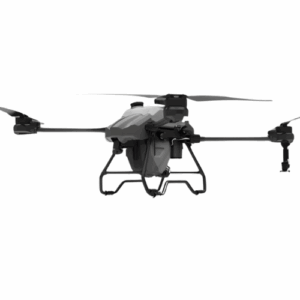

HV50 Agricultural Drone: Technical Specifications
The HV50 is a 4-propeller drone engineered for maximum-scale agricultural spraying. With one of the largest tank capacities available, it is designed to provide unparalleled coverage and efficiency for the most extensive farming operations.
Aircraft
- Type: 4-propeller drone
- Diagonal Wheelbase: 2300 mm
- Dimensions (Folded): 1950 x 1720 x 815 mm
- Dimensions (Unfolded): 635 x 1340 x 815 mm
- Body Weight (without battery): 35 kg
- Max Takeoff Weight: 99 kg
Spraying System
- Tank Capacity: 50 Liters
- Spraying Method: Centrifugal
- Spray Rate: 12 Liters/minute
- Effective Spray Width: 6-10 meters
Flight Performance
- Max Flight Speed: 5-10 m/s
- Effective Control Range: 3 km (without obstacles)
- Operating Temperature: -10°C to 40°C
Power System
- Operating Voltage: 75.6V (18S)
- Battery Capacity: 18S 30000mAh
- Battery Weight: 14 kg
- Flight Time (No Load): 18 minutes
- Flight Time (With Load): 7 minutes
- Charging Time: 25 minutes
