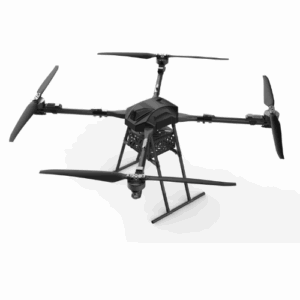

M50 Drone: Technical Specifications
The M50 is a high-performance 4-propeller drone built for heavy-duty tasks. Combining a massive payload capacity with extended flight time and range, it stands as a robust solution for professional applications.
Aircraft & Payload
- Type: 4-propeller drone (Quadcopter)
- Diagonal Wheelbase: 2100 mm
- Dimensions (Folded): 1000 x 1000 x 970 mm
- Dimensions (Unfolded): 1600 x 1600 x 970 mm
- Body Weight: 27 kg (without batteries)
- Max Payload: 50 kg
- Max Takeoff Weight: 100 kg
- Hovering Accuracy: Vertical ±0.5 m, Horizontal ±0.1 m
Flight Performance
- Max Flight Speed: 8-15 m/s
- Max Ascent Speed: Up to 3 m/s
- Max Descent Speed: Up to 3 m/s
- Max Wind Resistance: 10 m/s
- Max Flight Altitude: 60 m
- Typical Flying Altitude from Ground: 3000 m
- Max Control Range: 15 km (without obstacles)
- Operating Temperature Range: -10°C to 40°C
Power System
- Battery: 14S 66000mAh x2
- Operating Voltage: 58.8V (14S)
- Flight Time (No Load): 70 minutes
- Flight Time (With Load): 25 minutes
- Battery Charge Time: 60 minutes
